📌LAB POINTS
- Easily stream your DJ set or live audio recording to Instagram, YouTube + more

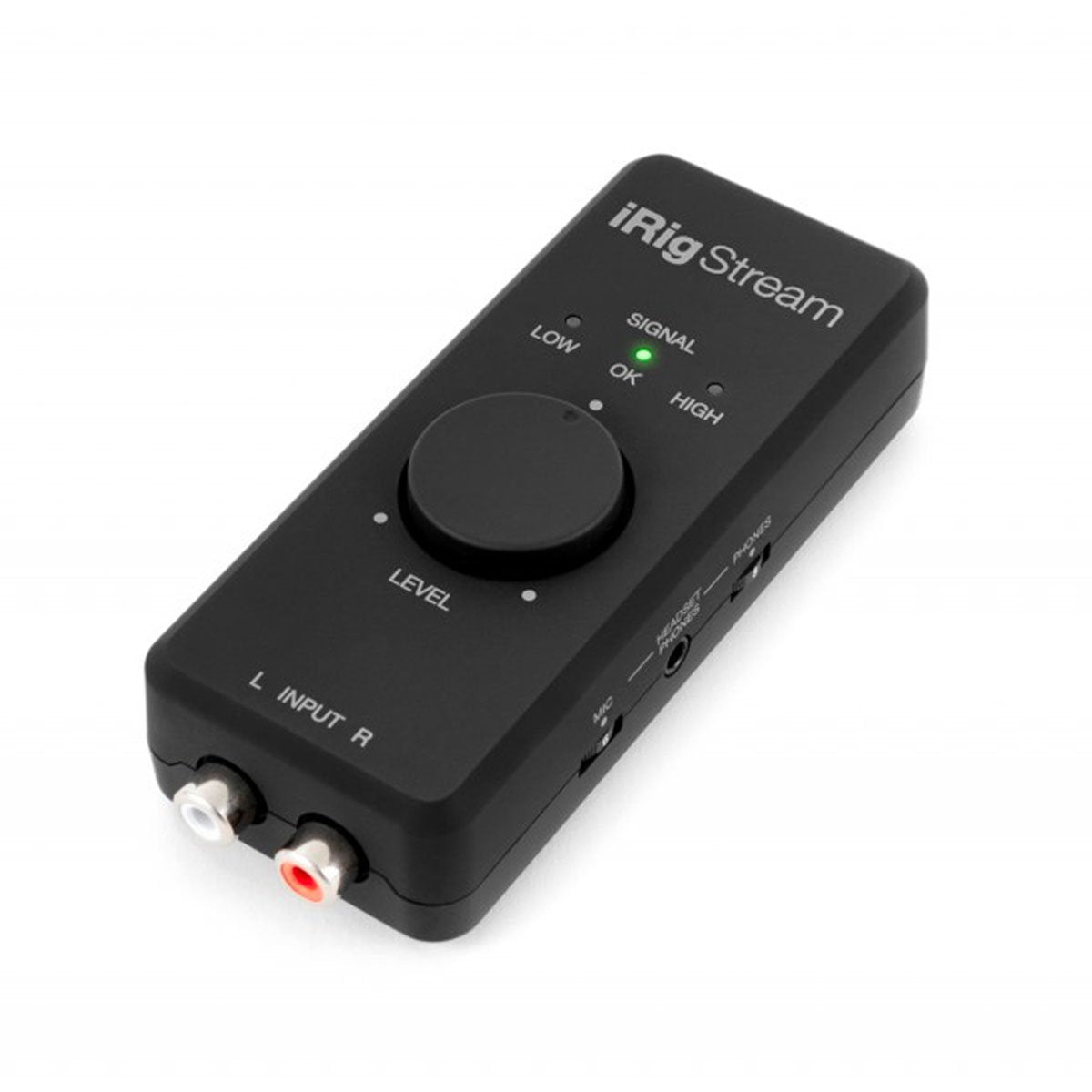

- Stereo line input over RCA connectors
- Includes connectors for lightning / USB-C / USB-A

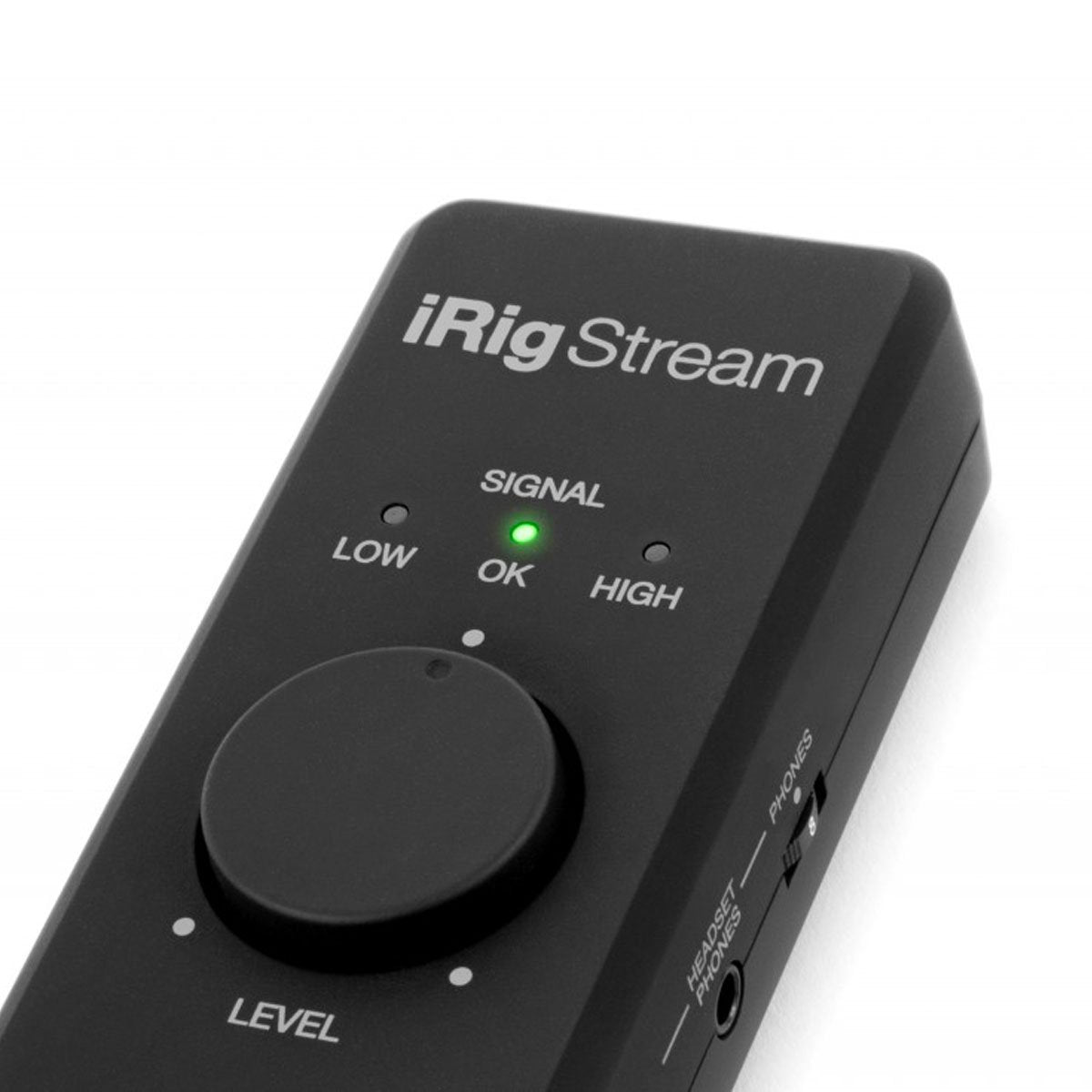

- Audio level LED indicators for instant gain monitoring
- Up to 48kHz / 24bit resolution for crystal clear sound
- Pre-mixes your audio source down to stereo or mono

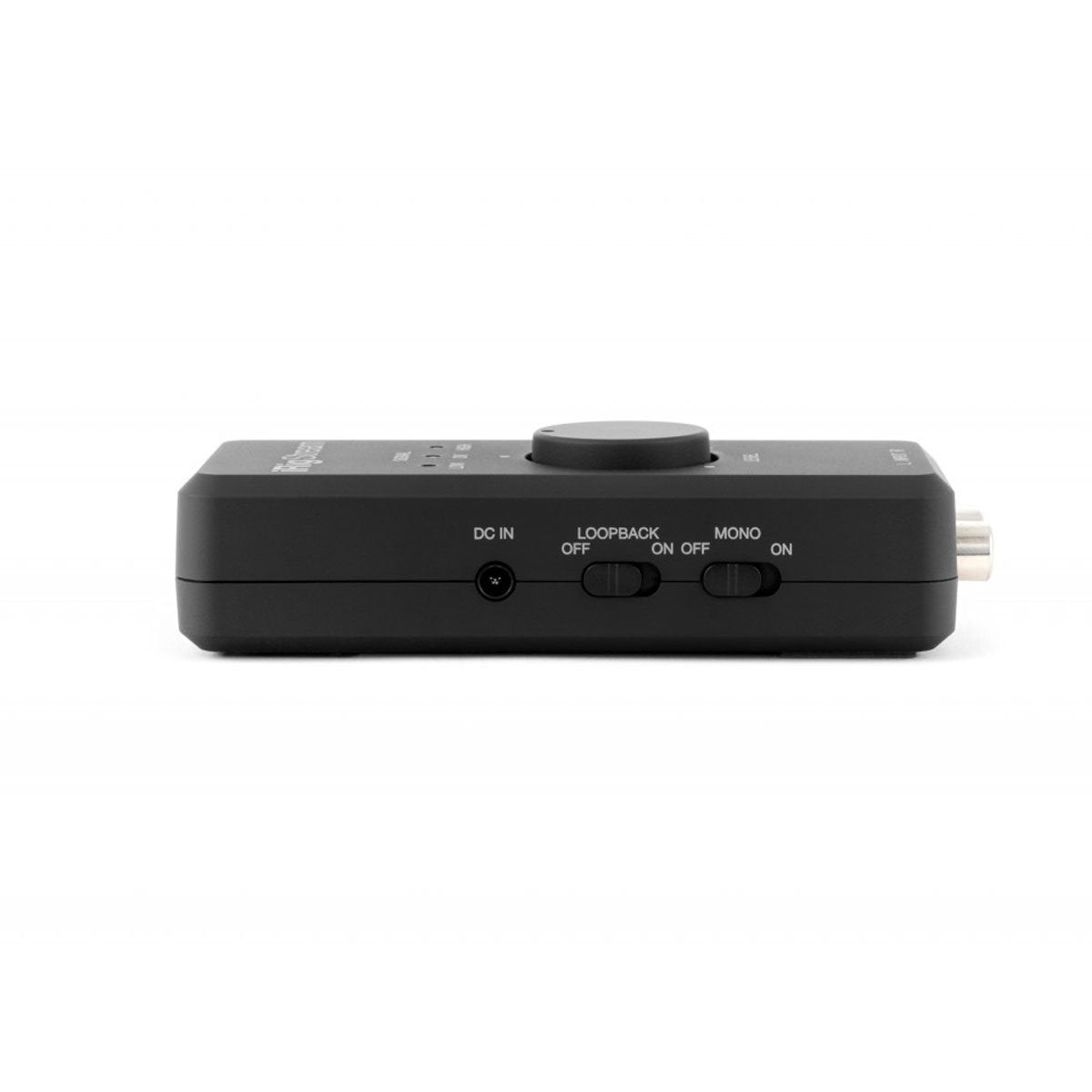

- Loop-back mode mixes incoming signals with your device’s audio

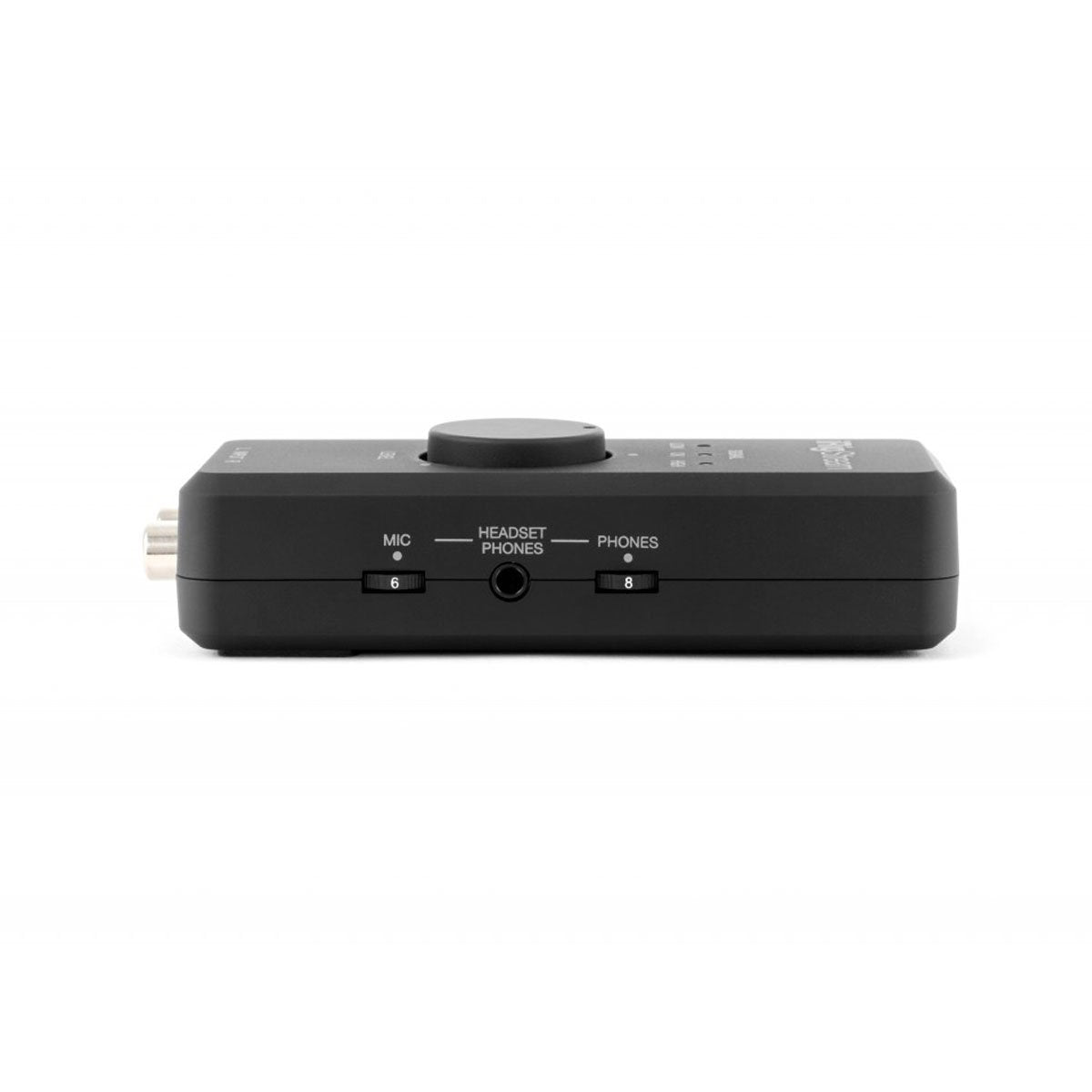

- Headphone out with integrated mic input to talk over your music
- Powered by your device for use on the go, can also charge w/ optional power supply (not included)
- Works with all your favorite apps
- Custom ASIO driver for superior performance on Windows machines

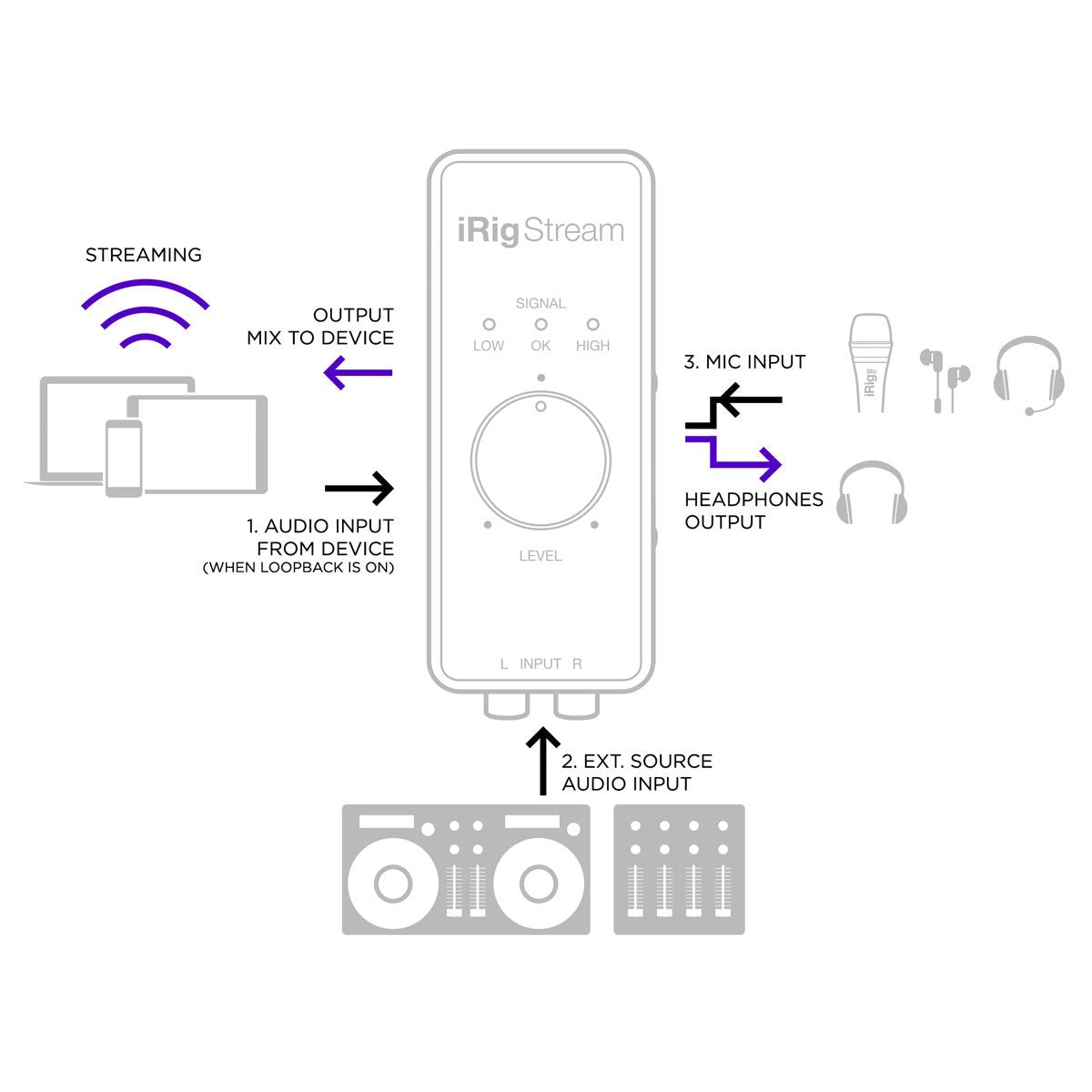

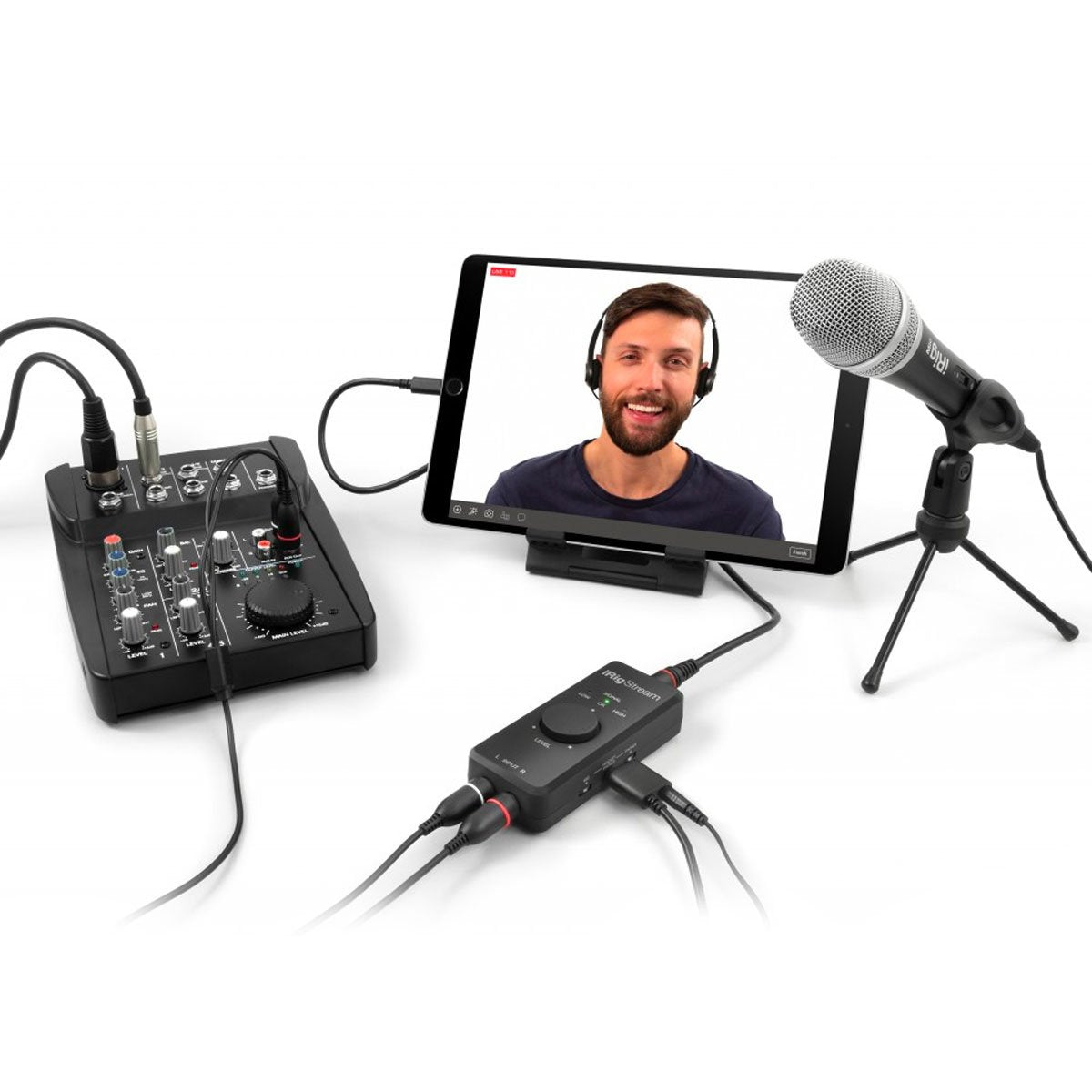

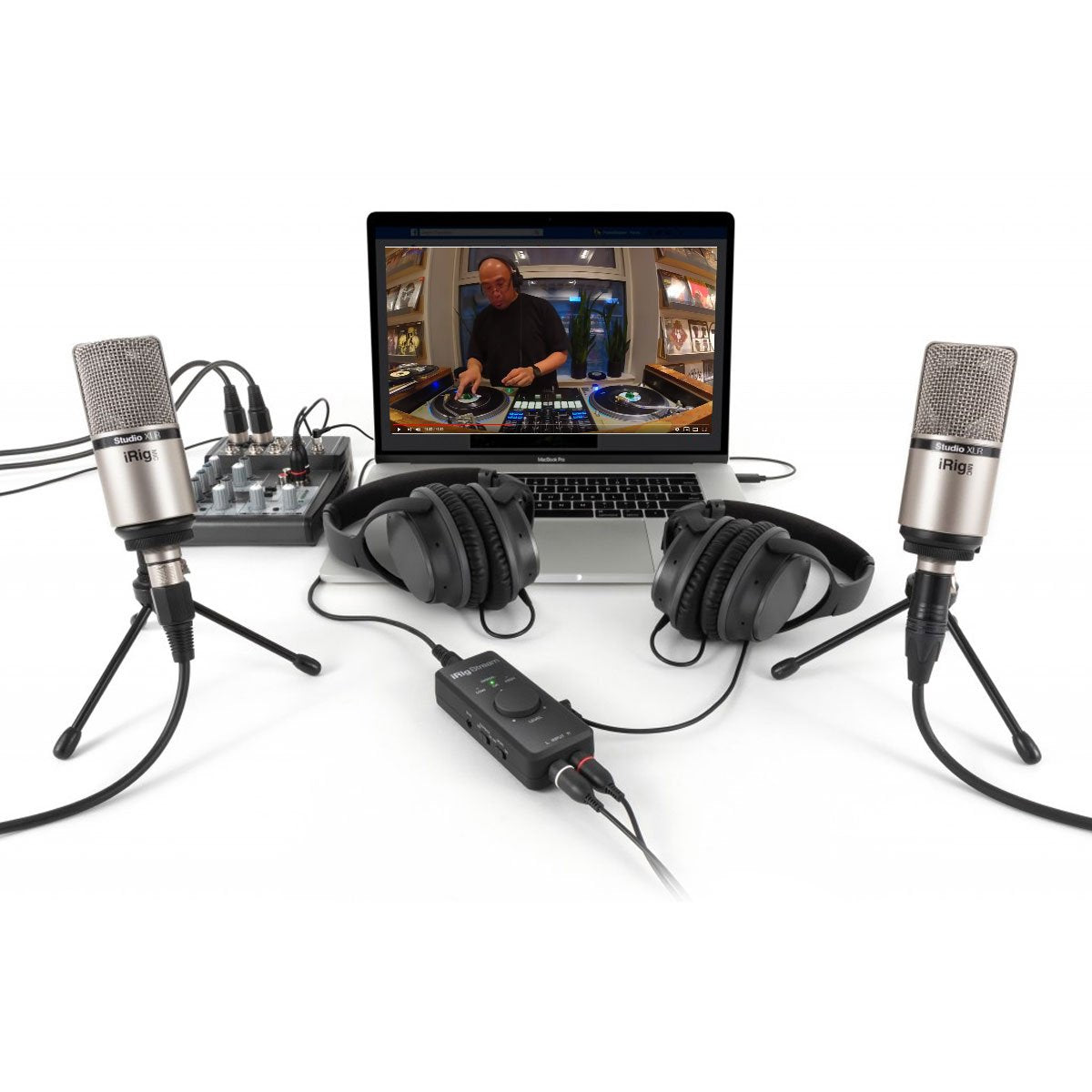

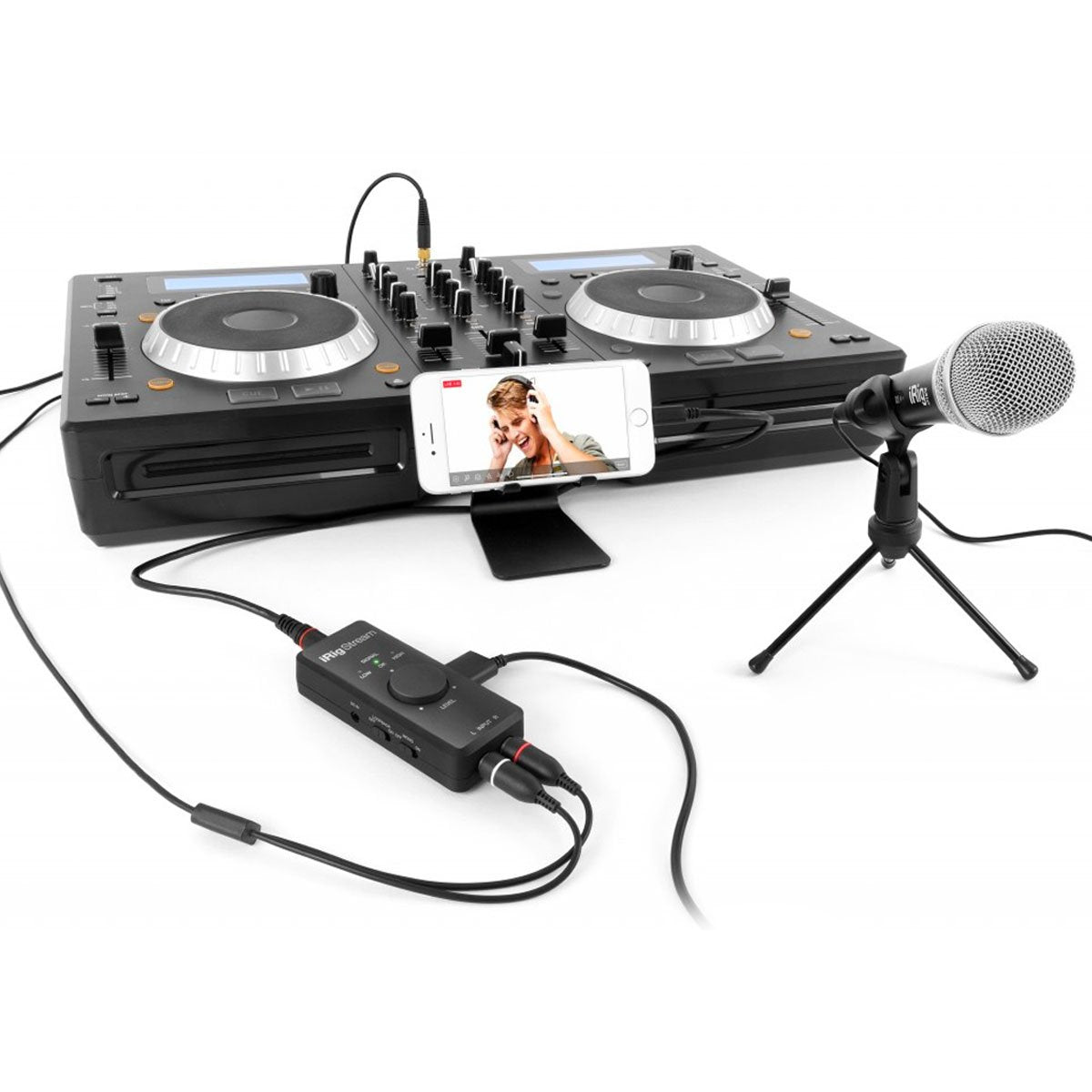

"iRig Stream makes it easy to connect all your audio sources and route them to a streaming or recording app. Send the digital output of your smartphone, tablet or laptop into iRig Stream, mix it with external audio sources like mixers, DJ decks, keyboards and more. Add your voice from earbuds (or an iRig Mic) and send all 3 signals back to your device to popular apps like Instagram, or just your built-in camera app." - IK Multimedia
🔎TECH SPECS
- Conversion: 24-bit A/D, 24-bit D/A
- Sampling Rate: 44.1 kHz, 48 kHz
- Power: USB bus powered or DC input (sold separately)
- Metering: 3x LEDs

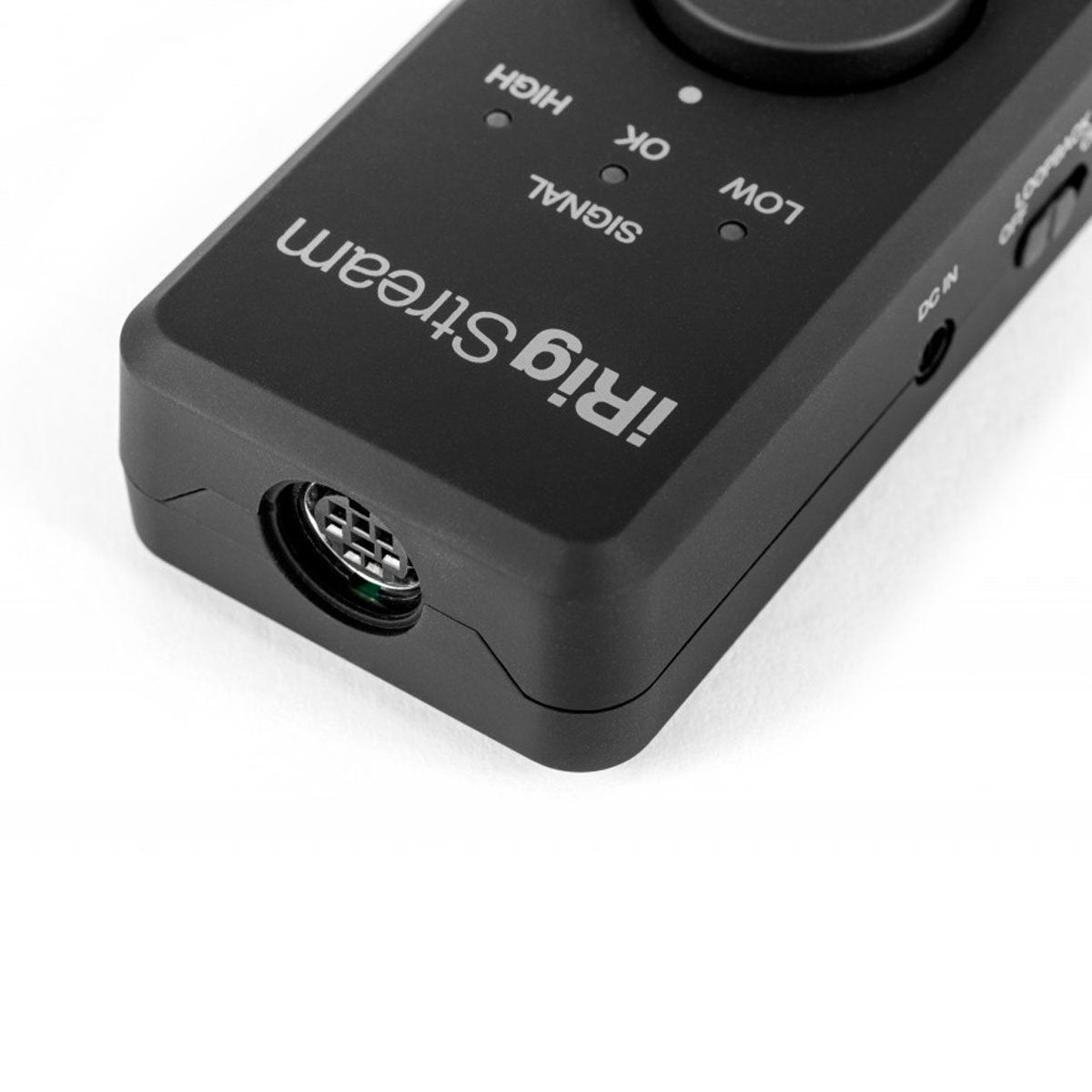

- Device Connection: mini-DIN
- Connector: 2x RCA (unbal.) Left/Right
- Nominal Input Level: -10dBV
- Input Impedance: 16.5kOhms
- Frequency Response: 20 Hz – 20kHz
- Connector: 1/8” TRRS jack (CTIA wiring standard)
- Supply voltage: > 2,5V
- Microphone gain: Adjustable with numbered thumbwheel
- Frequency Response: 20 Hz – 20kHz
- Headphone Level control: numbered thumbwheel
- Headphone Output Power: 100mW into 50Ohms
- Dimensions: 4.15" x 1.75" x 0.94" / 105.5 mm x 44.5 mm x 24 mm
- Weight: 2.29 oz / 65 g
📦COMES WITH
- iRig Stream interface
- Lightning to mini-DIN connection cable (60cm / 23.62")
- USB C-Type to mini-DIN connection cable (60cm / 23.62")
- USB A-Type to mini-DIN connection cable (60cm / 23.62")
- iRig Recorder LE software for iOS (free w/ product registration)
- iRig Recorder 3 software for Android (free w/ product registration)
- iRig ASIO Driver for Windows (free w/ product registration)
