📌LAB POINTS

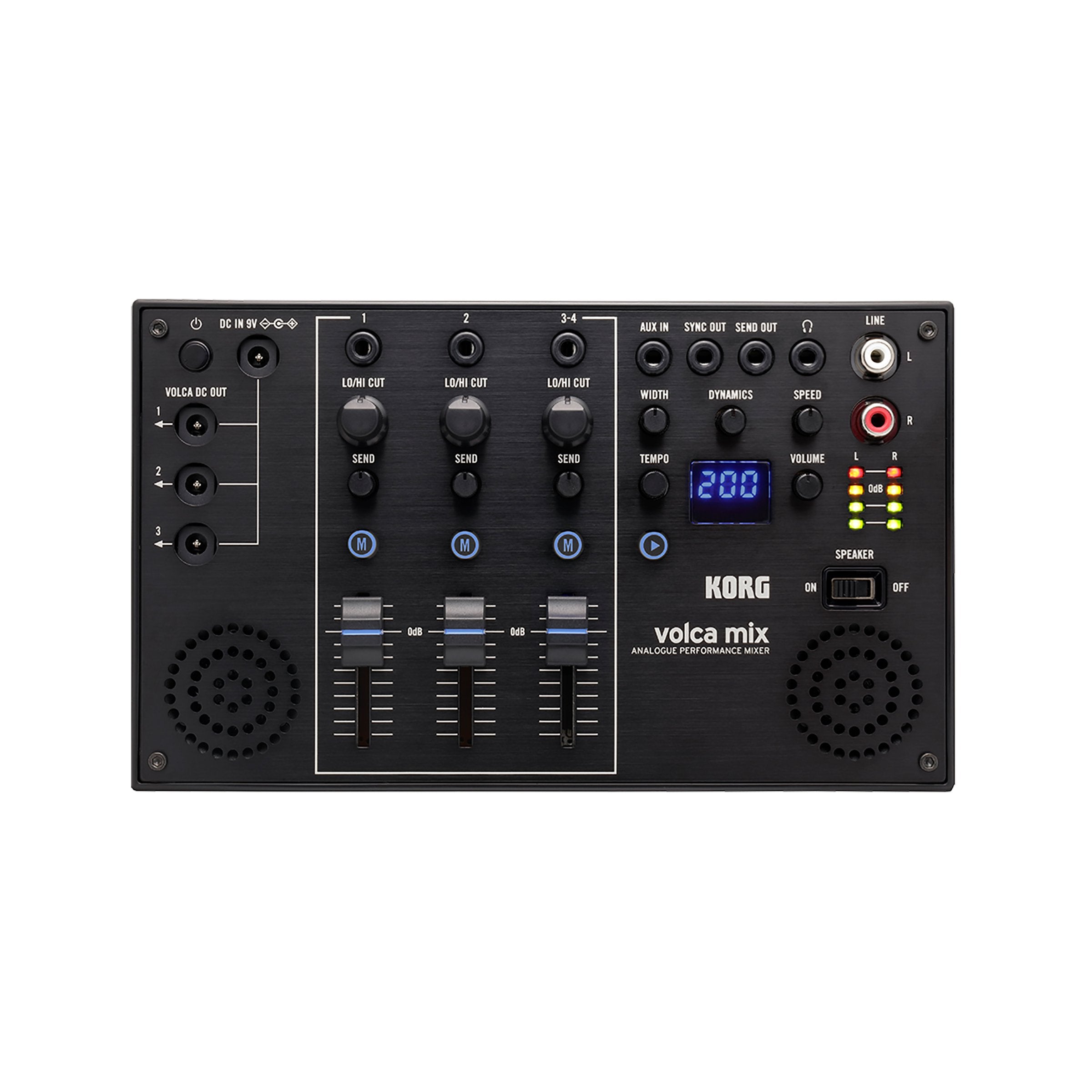

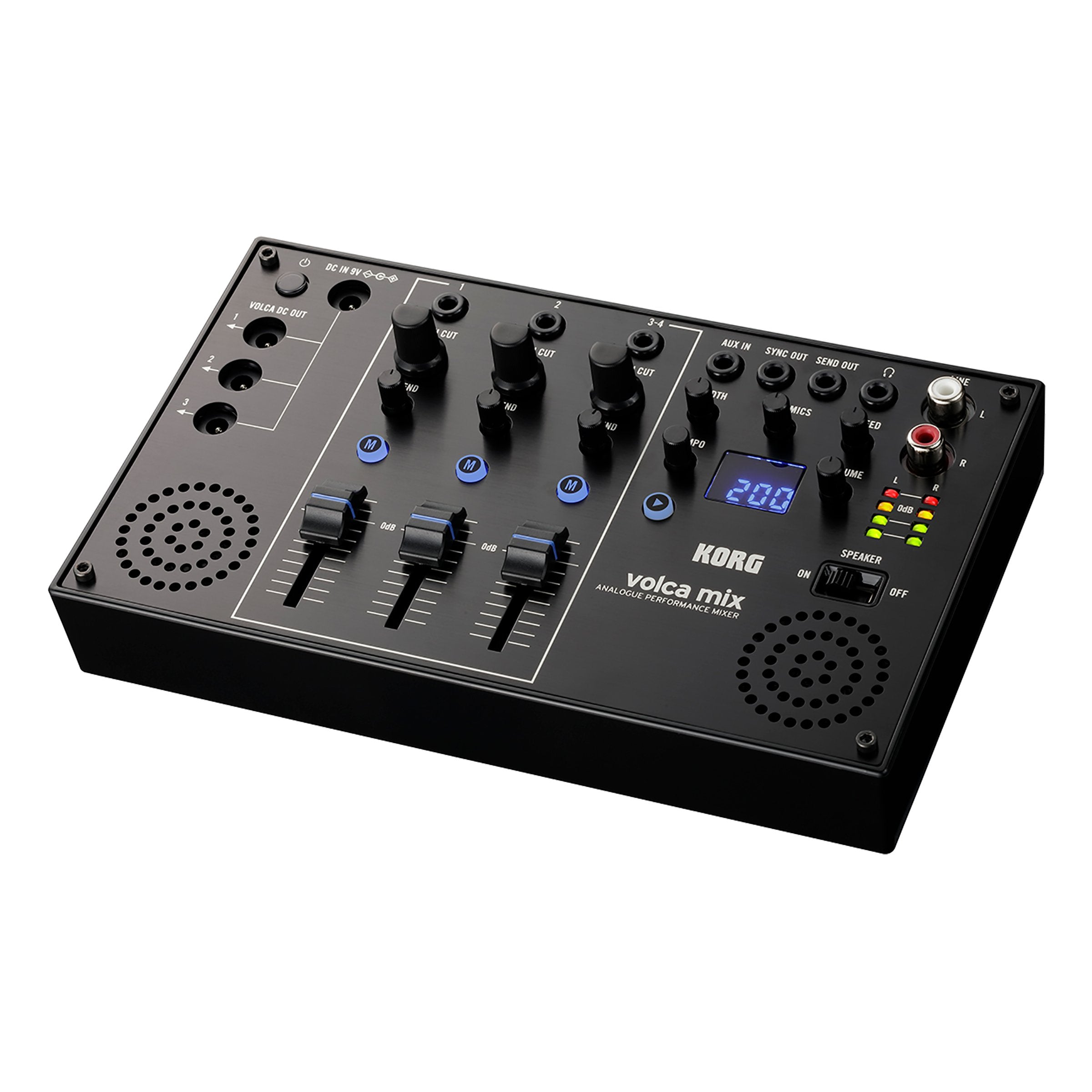

- 4 channel analog mixer designed specifically for use w/ Korg Volca units
- compact construction w/ high quality aluminum panels
- all analog circuitry + master effects chain (stereo expander + compressor) for punchy, warm sound

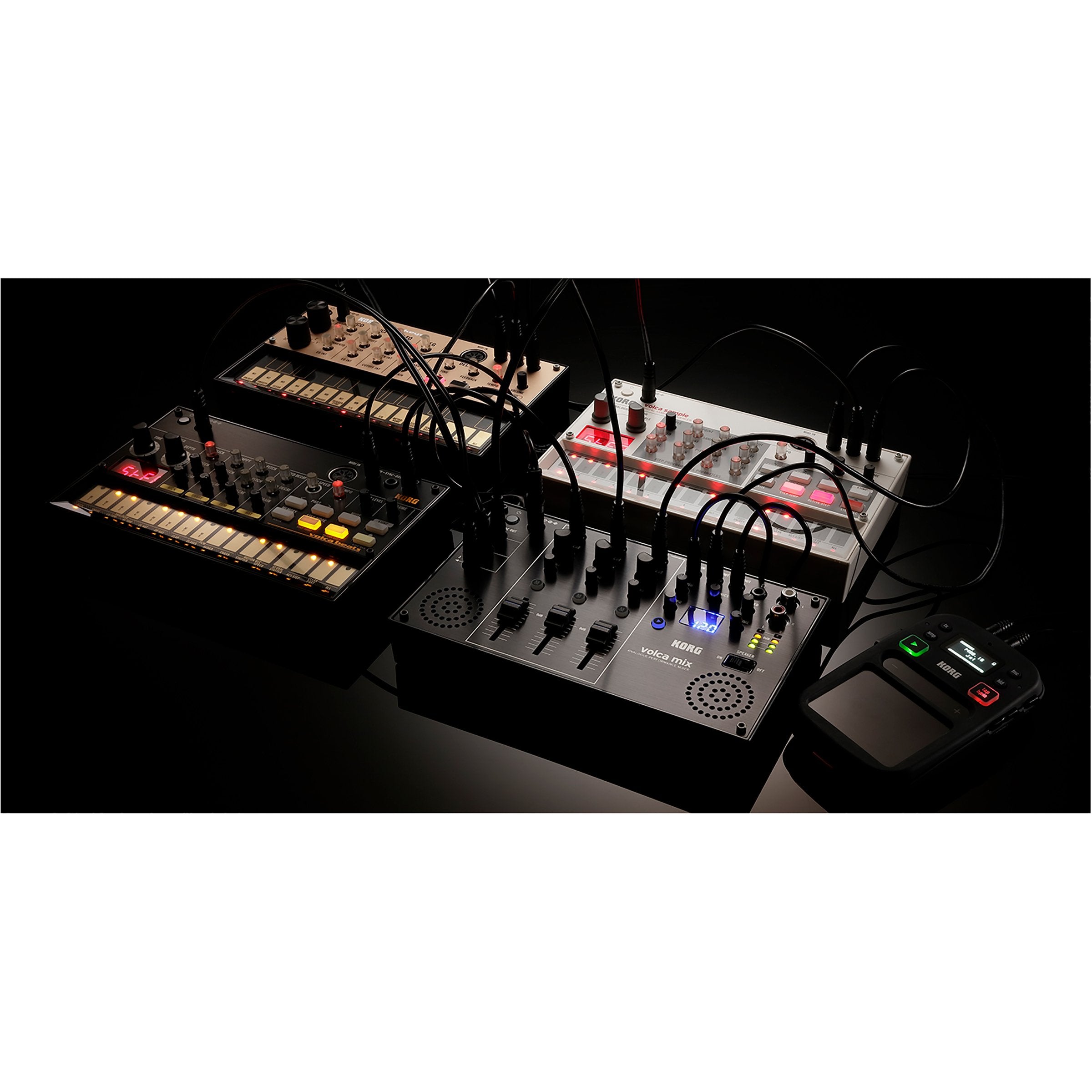

- DC out streamlines setup allowing for 3 Volca units to be connected + powered simultaneously
- built-in stereo speakers for ultimate portability
- crisp LO/HI CUT filters + mute button per channel
- vertical faders for precise control, master level LED VU meter
- connect external effects unit via SEND/RETURN connection
- AUX IN for connecting a 4th Volca or any instrument w/ stereo mini out
- analog SYNC OUT for connecting other gear in time
- perfect for live performance + studio use
- works with all Korg Volcas
"The Volca Mixer allows you to combine multiple Volcas with filters, effects, and more - all in one streamlined, compact unit. Perfect for live performance or studio jamming." - TTL
🔑KEY FEATURES
- 4 channels: 2x mono (volca keys, volca bass, volca beats, volca kick) + 1x stereo (volca sample, volca fm)
- channel controls: Lo/Hi Cut, Send Level, Mute, Volume (Available to boost +6 dB gain)
- master effects: Analog Stereo Width Expander (Width), Analog Dynamic Range Compressor (Dynamics, Speed)
- mixer input: Mixer In x 3 (1/8" / 3.5 mm stereo mini jack)
- audio output: LINE OUT (L/R, RCA pin jack, Max 11.1 dBu) Headphone (1/8" / 3.5 mm stereo mini jack)
- aux: AUX In (1/8" [3.5 mm] stereo mini jack)
- send: Send Out (1/8" / 3.5 mm stereo mini jack)
- sync: Sync Out (1/8" / 3.5 mm stereo mini jack / Output Level: 5 V)
- speaker: built-in stereo speakers, On/Off
- power: AC adapter (DC 9 V)
- output power: VOLCA DC OUT x 3 (connect with included DC-DC cable, up to 800 mA in total, 9 V)
- dimensions: 7.60" x 4.53" x 1.77" / 193 mm x 115 mm x 45 mm
- weight: 12.35 oz. / 350g

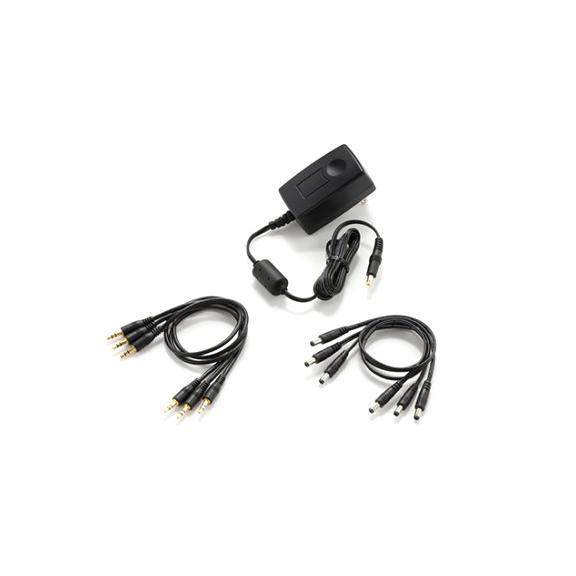

📦COMES WITH
- AC adapter
- 3x DC-DC cables
- 3x audio cables
